Item AORX60SH, weight 570g, ERD 525. 60mm deep rim section makes these road clincher bike rims pretty strong and stiff, but still areodynamic performance. It’s durable enough for road racing, triathlon, training and also cyclocross use.
Item No.: AORX60SH
Size: 700C
Material: Full Carbon Toray T700
Type: Clincher (Tubeless Ready)
Brake: Rim Brake
Weight: 570g±25
ERD: 525mm
Inner Width: 18mm
Outer Width: 25mm
Depth: 60mm
Max Spoke Tension: 140kgf
Max Weight Limit: 130kg
Product Item: Road carbon wheel rim 700c 60mm deep clincher tubeless compatible
60mm deep rim section makes these road clincher bike rims pretty strong and stiff, but still areodynamic performance. It’s durable enough for road racing, triathlon, training and also cyclocross use.
Specification:
| Item: | AORX60SH | Use: | road bike, tt, triathlon, cyclocross |
| Rim type: | 700C clincher – *rim brake | Material: | Toray T700 carbon fiber |
| Tubeless ready: | Yes | Weight: | 560g±25 |
| External/Internal width: | 25mm / 18mm | ERD: | 525mm |
| Depth: | 60mm | Weight limit: | 130kgs |
| Weave: | UD | Finish: | Matte, glossy |
| Spoke hole count: | 16 – 36 | Assemble hole diameter: | 8.5mm |
| Spoke hole diameter: | 4.5mm / 2.5mm or customized | Valve hole diameter: | 6.5mm |
| Max spoke tension: | 140kgf (recommended 110~130kgf) | Max tire pressure: | 125psi / 8.6bar |
| Decal: | Customized | Min tire pressure: | 80psi / 5.5bar |
| High TG resin temperature: | 255°C | Standard: | EN standard |
*Rim brake track available in 3k twill (recommended) and basalt surface.
Features:
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

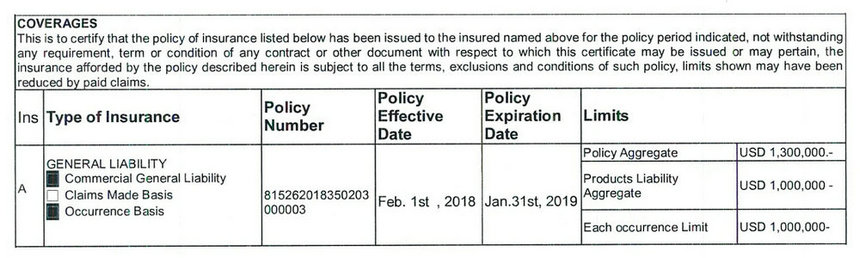

1.3 Million Liability Insurance Worldwide:
5 years warranty:
Aowea warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
