Lightweight 35mm Wide Hookless 27.5er Mtb Trail Carbon Rim

Lightweight 35mm Wide Hookless 27.5er Mtb Trail Carbon Rim

Item AOMX735TR, weight 390g, ERD 560mm. This 35mm wide & 23.5mm deep version 27.5er mtb trail carbon rim is the most popular shape of carbon fiber mtb rims, it’s perfect for all mountain and trail mountain bicycle.
Item No.: AOMX735TR
Size: 27.5 Inch
Material: Full Carbon Toray T700 & T800
Type: Hookless (Tubeless Ready)
Weight: 390g±20
ERD: 560mm
Inner Width: 29mm
Outer Width: 35mm
Depth: 23.5mm
Max Spoke Tension: 140kgf
Max Weight Limit: 115kg


Product Item: Lightweight 35mm wide hookless 27.5er mtb trail carbon rim

35mm wide carbon rim trail profile

This 35mm wide & 23.5mm deep version 27.5er mtb trail carbon rim is the most popular shape of carbon fiber mtb rims, it’s perfect for all mountain and trail mountain bicycle. Fit with tubeless tires, the full carbon hookless rim massively reduces the chance of punctures, is superlight and at 29mm inner rim width works to perfection with wide all mountain and trail rubber.


 Item: AOMX735TR Use: Trail, all mountain
 Rim type: 27.5″ / 650b hookless Material: Toray T700 & T800 carbon fiber
 Tubeless ready: Yes Weight: 390g±20
 External / Internal width: 35mm / 29mm ERD: 560mm
 Depth: 23.5mm Weave: UD, 3k, 6k, 3k twill, marble
 Weight limit: 115kgs Finish: Matte, glossy
 Spoke hole count: 16 – 36 Assemble hole diameter: 8.5mm
 Spoke hole diameter: 4.5mm / 2.5mm or customized Valve hole diameter: 6.5mm
 Max spoke tension: 140kgf (recommended 110~130kgf) Max tire pressure: 60psi / 4.1bar
 Tire size: 2.3″ ~ 2.5″ (recommended) Min tire pressure: 25psi / 1.75bar – read more
 Decal: Customized Standard: EN standard


  • The unique asymmetric 3mm offset rim profile balances drive and non-drive side spoke tension to create a more durable and long lasting mtb wheelset.
  • Impact Resistant Construction. Carbon rims feature a layer of composite material that increases the impact strength and helps distribute energy and shock from impacts to the rim.
  • Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
  • Super lightweight, rim constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
  • Smooth Wall Tec. No folded prepreg during curing, smooth both inside and outside rim wall to reduce potential quality issues.
  • Carbon Strip Reinforcement. Use unique carbon strip to strengthen the spoke tension and stabilize rim structure and reduce the rim weight.

  • Hookless Rim Bead. Hookless rim bead more straight and smooth side walls, tire can touch rim walls fully. More durable and impact resistance compared to the traditional hooks rim.
  • Tubeless Ready. Beadlock design makes the rims better tubeless tire setup and better sealing, results a more lightweight carbon wheels.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.

Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.

Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the stength of rim is the stongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

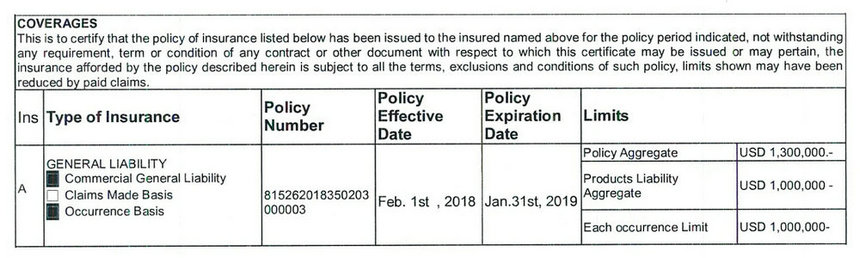

1.3 Million Liability Insurance Worldwide:

liability insurance for carbon mtb rims

5 years warranty:

Aowea warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim. Please retain your proof of purchase for any future warranty claims.

This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
