High TG Resin Carbon Rims 700c Clincher 50mm Deep Tubeless Compatible
High TG Resin Carbon Rims 700c Clincher 50mm Deep Tubeless Compatible
High TG Resin Carbon Rims 700c Clincher 50mm Deep Tubeless Compatible Item AORX50SH, weight 500g, ERD 545. U shape 50mm deep rim profile makes this road clincher rim pretty stiff, but still areodynamic performance. Durable and areodynamic enough for road racing, training, climbing, and also cyclocross riding.
Item No.: AORX50SH Size: 700C Material: Full Carbon Toray T700 Type: Clincher (Tubeless Ready) Brake: Rim Brake Weight: 500g±20 ERD: 545mm Inner Width: 18mm Outer Width: 25mm Depth: 50mm Max Spoke Tension: 140kgf Max Weight Limit: 125kg
Product Item: High TG resin carbon rims 700c clincher 50mm deep tubeless compatible
U shape 25mm wide and 50mm deep rim profile makes these road clincher bicycle rims pretty stiff, but still areodynamic performance. Durable and areodynamic enough for road racing, training, climbing, triathlon and also cyclocross riding.
Specification:
Item:
AORX50SH
Use:
road bike, cyclocross
Rim type:
700C clincher – *rim brake
Material:
Toray T700 carbon fiber
Tubeless ready:
Yes
Weight:
500g±20
External/Internal width:
25mm / 18mm
ERD:
545mm
Depth:
50mm
Weight limit:
125kgs
Weave:
UD
Finish:
Matte, glossy
Spoke hole count:
16 – 36
Assemble hole diameter:
8.5mm
Spoke hole diameter:
4.5mm / 2.5mm or customized
Valve hole diameter:
6.5mm
Max spoke tension:
140kgf (recommended 110~130kgf)
Max tire pressure:
125psi / 8.6bar
Decal:
Customized
Min tire pressure:
80psi / 5.5bar
High TG resin temperature:
255°C
Standard:
EN standard
*Rim brake track available in 3k twill (recommended) and basalt surface.
Features:
Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
U areodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.
Tubeless ready design, it makes road clincher rims better tubeless setup and better sealing.
Super lightweight, rim constructed with premium Toray T700 carbon fiber, best strength to weight ratio with no expense spared.
High TG resin temperature 255° brake track, solve the heating problem on the rim brake clincher bicycle wheels.
Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

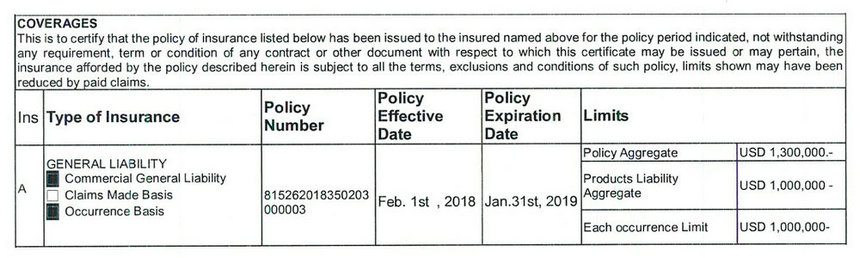

1.3 Million Liability Insurance Worldwide:
5 years warranty:
Aowea warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
