Aerodynamic 88mm Deep Wider 25mm U Shape Tubular Carbon 700C Road Rim
Item AORT88S, weight 530g, ERD 469. Carbon road rim with 25mm wide are more and more popular. The wider rim for road bike wheels increases air volume slightly, lower rolling resistance, better handling and more confidence.
Item No.: AORT88S
Size: 700C
Material: Full Carbon Toray T700
Type: Tubular
Brake: Rim Brake
Weight: 530g±20
ERD: 469mm
Width: 25mm
Depth: 88mm
Max Spoke Tension: 180kgf
Max Weight Limit: 135kg
Description
Product Item: 88mm deep wider 25mm U shape tubular carbon 700C road rim
These areo U shape carbon road rim with 25mm wide are more and more popular. The wider rim for road bike wheels increases air volume slightly, lower rolling resistance, better handling and more confidence.

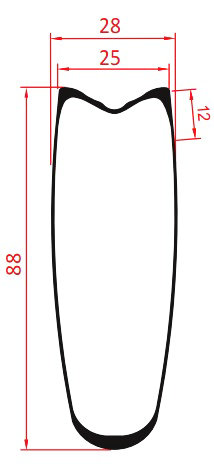

Specification:
| Item: | AORT88S | Use: | road bike, cyclocross |
| Rim type: | 700C tubular – rim brake | Material: | Toray T700 carbon fiber |
| Width: | 25mm | Weight: | 530g±20 |
| Depth: | 88mm | ERD: | 469mm |
| Weave: | UD, 3k, 6k, twill, marble | Finish: | Matte, glossy |
| Spoke hole count: | 16 – 36 | Assemble hole diameter: | 8.5mm |
| Spoke hole diameter: | 4.5mm / 2.5mm or customized | Valve hole diameter: | 6.5mm |
| Max spoke tension: | 140kgf (recommended 110~130kgf) | Max / Min tire pressure: | N/A / 80psi (5.5 bar) |
| Decal: | Customized | Weight limit: | 135kgs |
| TG resin temperature: | 210°C | Standard: | EN standard |
Features:
- U areodynamic shape makes these road tubular rims lightweight but still stiff, keeping them stable in cross winds condition.
- High TG 210°C resin temperature brake track, less than 0.1% braking failure on these rim brake bicycle tubular wheels.
- Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
- Super lightweight, rim constructed with premium Toray T700 carbon fiber, best strength to weight ratio with no expense spared.
- Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.

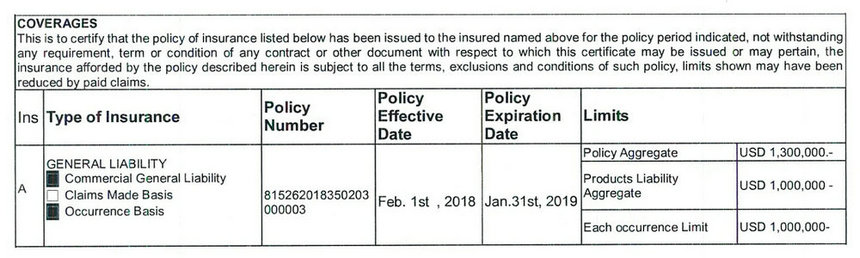

1.3 Million Liability Insurance Worldwide:
5 years warranty:
Aowea warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
