700C Road Bicycle U Shape 25mm Wide 38mm Deep Clincher Rim Tubeless Ready
Item AORX38SH, weight 470g, ERD 569mm. Wider, stronger and faster. This road 38mm deep clincher rim is 25mm wide. The wide rim profile offers improved aerodynamics, better handling in crosswinds condition and faster riding.
Item No.: AORX38SH
Size: 700C
Material: Full Carbon Toray T700
Type: Clincher (Tubeless Ready)
Brake: Rim Brake
Weight: 470g±20
ERD: 569mm

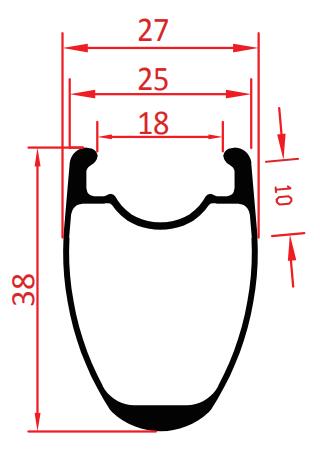

Inner Width: 18mm
Outer Width: 25mm
Depth: 38mm
Max Spoke Tension: 140kgf
Max Weight Limit: 120kg
Description
Product Item: 700C road bicycle U shape 25mm wide 38mm deep clincher rim tubeless ready
Wider, stronger and faster. This road 38mm deep clincher rim is 25mm wide. The wide rim profile offers improved aerodynamics, better handling in crosswinds condition and faster riding.
Specification:
| Item: | AORX38SH | Use: | road bike, cyclocross |
| Rim type: | 700C clincher – *rim brake | Material: | Toray T700 carbon fiber |
| Tubeless ready: | Yes | Weight: | 470g±20 |
| External/Internal width: | 25mm / 18mm | ERD: | 569mm |
| Depth: | 38mm | Weight limit: | 120kgs |
| Weave: | UD | Finish: | Matte, glossy |
| Spoke hole count: | 16 – 36 or customized | Assemble hole diameter: | 8.5mm |
| Spoke hole diameter: | 4.5mm / 2.5mm or customized | Valve hole diameter: | 6.5mm |
| Max spoke tension: | 140kgf (recommended 110~130kgf) | Max tire pressure: | 125psi / 8.6bar |
| Decal: | Customized | Min tire pressure: | 80psi / 5.5bar |
| High TG resin temperature: | 255°C | Standard: | EN standard |
*Rim brake track available in 3k twill (recommended) and basalt surface.
Features:
- Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
- High TG resin temperature 255° brake track, solve the heating problem on the rim brake clincher bicycle wheels.
- U areodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.
- Tubeless ready design, it makes road clincher rims better tubeless setup and better sealing.
- Super lightweight, rim constructed with premium Toray T700 carbon fiber, best strength to weight ratio with no expense spared.
- Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.
Manufacturing process:
Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are meticulously by the layup workers, it ensures the accuracy of each rim in the production process.
Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
100% Quality Inspection:
Aowea does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.
Read more about carbon rim quality control here.
1.3 Million Liability Insurance Worldwide:
5 years warranty:
Aowea warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.
This warranty only applies to the original owner and is not transferable.
Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.
Please retain your proof of purchase for any future warranty claims.
This warranty does not cover:
1. Normal wear and tear;
2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;
3. Improper assembly, maintenance, or maintenance by an unauthorized technician.
